Restricted Arrays

Overview

The restricted arrays functionality is designed to provide users with further options for how data is distributed among processors by allowing them to reduce the total number of processors that actually have data and also by allowing users to remap which data blocks go to which processors. There are two calls that allow users to create restricted arrays; both must be used with the new interface for creating arrays. This requires that users must first create an array handle using the ga_create_handle call and then apply properties to the handle using different ga_set calls. The two calls that allow users to create restricted arrays are ga_set_restricted and ga_set_restricted_range. The first call is more general, the second is a convenience call that allows users to create restricted arrays on a contiguous set of processors.

Both calls allow users to restrict the data in a global array to a subset of available processors. The set ga_set_restricted call has two arguments, nproc, and an array list of size nproc. Nproc represents the number of processors that are supposed to contain data and list is an array of the processor IDs that contain data. For the array shown in Figure 8, the problem is run on 36 processors but for nproc=4 and list=[8,9,15,21] only the processors shown in the figure will have data. The array will be decomposed assuming that it is distributed amongst only 4 processors so it will be broken up using either a 2x2, 1x4, or 4x1 decomposition. The block that would normally be mapped to process 0 in a 4 processor decomposition will go to process 8, the data that would map to process 1 will go to process 9, etc. This functionality can be used to create global arrays that have data limited to a small set of processors but which are visible to all processors.

_images/GAon36Processors.png

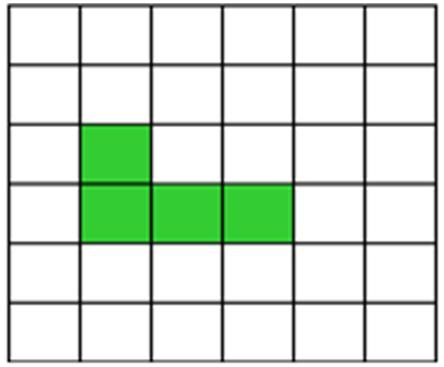

Figure 8: A global array distributed on 36 processors. If nproc=4 and list = [8,9,15,21] then only the shaded processor will contain data. The array will be decomposed into 4 blocks.

The restricted array capability can also be used to alter the default distribution of data. This is ordinarily done in a column major way on the processor grid so that a global array created on 16 processors that has been decomposed into a 4x4 grid of data blocks would have data mapped out as shown in Figure 9. The first column of blocks is assigned to processes 0-3, the second to processes 4-7, etc.

_images/GAon16Processors.png

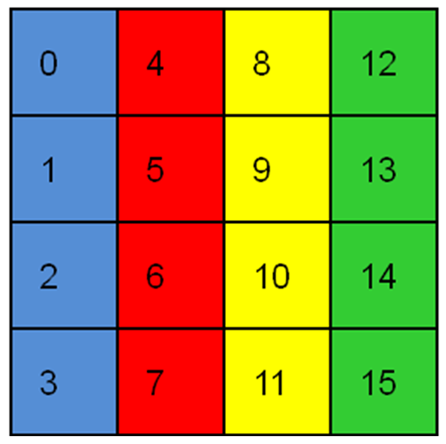

Figure 9: Standard data distribution for a global array created on 16 processors and decomposed into a 4x4 grid of data blocks.

Figure 10 shows an alternative distribution that could be achieved using restricted arrays and setting the list array to [0,1,4,5,2,3,6,7,8,9,12,13,10,11,14,15]. This distribution might but useful for reducing intranode communication for multiprocessor nodes

_images/GAon16ProcessorsAlternative.png

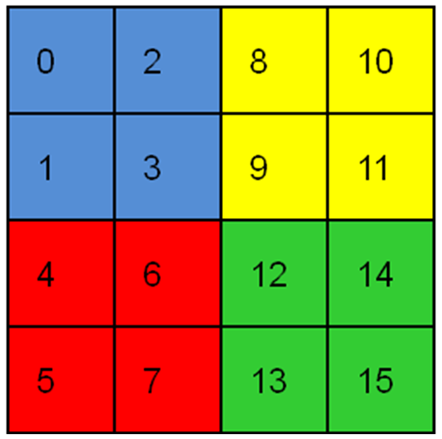

Figure 10: An alternative distribution that could be achieved using restricted arrays. An array on 16 processors decomposed into a 4x4 grid of data blocks.

Restricted Arrays Operations

  • Fortran subroutine: ga_set_restricted(g_a, list, nproc)

  • C: void GA_Set_restricted(int g_a, int list[], int nproc)

  • C++: GA::GlobalArray::setRestricted(int list[], int nproc) const

This subroutine restricts data in the global array g_a to only the nproc processors listed in the array list. The value of nproc must be less than or equal to the number of available processors. If this call is used in conjunction with ga_set_irreg_distr, then the decomposition in the ga_set_irreg_distr call must be done assuming the number of processors used in the ga_set_restricted call. The data that would ordinarily get mapped to process 0 in an nproc distribution will get mapped to the processor in list[0], the data that would be mapped to process 1 will get mapped to list[1], etc. This can be used to restructure the data layout in a global array even if the value of nproc equals the total number of processors available.

  • Fortran subroutine: ga_set_restricted_range(g_a, list, nproc)

  • C: void GA_Set_restricted_range(int g_a, int lo_proc, int hi_proc)

  • C++: GA::GlobalArray::setRestrictedRange(int lo_proc, int hi_proc) const

This subroutine restricts data in the global array g_a to the processors beginning withlo_proc and ending with hi_proc. Both lo_proc and hi_proc must be less than or equal to the total number of processors available minus one (e.g., in the range [0,N-1] where N is the total number of processors) and lo_proc must be less than or equal to hi_proc. If lo_proc=0 and hi_proc=N-1 then this command has no effect on the data distribution. This call is equivalent to using the ga_set_restricted call where nprocs = hi_proc-lo_proc+1 and the array list contains the processors [lo_proc, hi_proc] in consecutive order.
